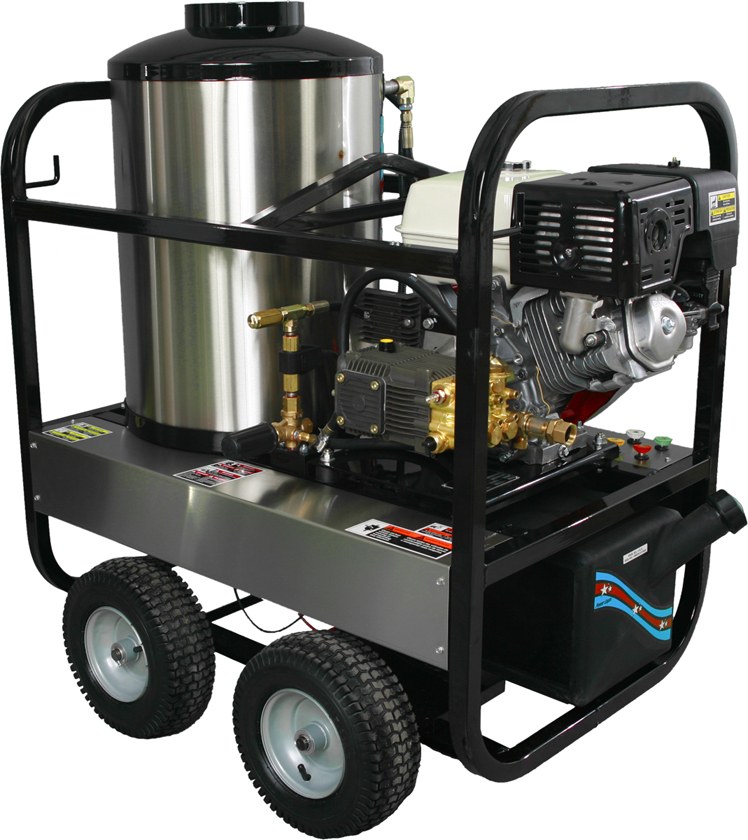

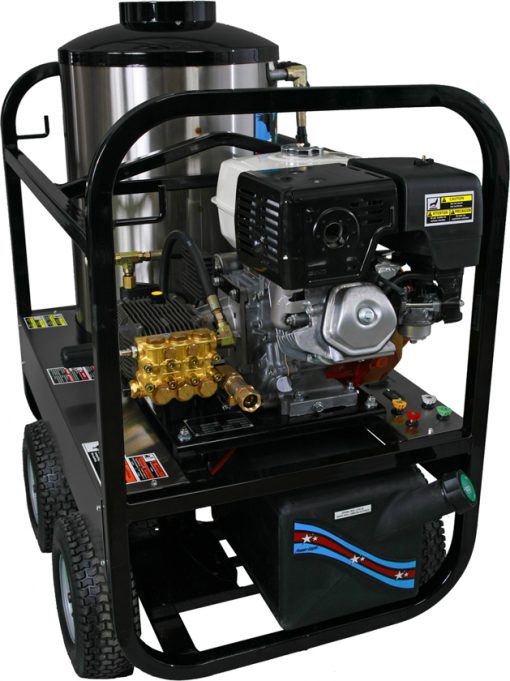

DC Series

Power Eagle DC series units are ideal for mobile washers, or any user who requires full portability. DC models are packed with high performance features and durable components, all while utilizing an ultra-compact design (only 26” wide). All DC models feature Beckett 12 volt burners with GeniSys safety control modules. The GeniSys controller monitors the burner’s condition and ensures safe, reliable operation. Certain DC models are available with Clutch Drive Pump Protection.Engine driven pumps and 12 volt DC burner systems make these units compact and very portable. Select units available with Power Eagle Clutch Pump Protection

View Printable Sheet: HOP-DC-one-sheet

Description

Description

Product Description

Standard Features

Durable Powder Coated Frame
Electric Start (N/A DC-3003)
Hour Meter
Pressure Relief Valve
Removable Poly Fuel Tank
Roll Cage Frame
½” Schedule 80 Steel Pipe Coil
Shock Absorbing Engine Base
Stainless Steel Combustion Chamber
Hardened Stainless Steel Nozzles
Trigger Gun Control
Triplex Ceramic Plunger Pump
Variable Pressure Wand
Low Oil Engine Protection
18 Amp Charging System
12V Ignition System
Racor Fuel Water Separating Filter
High Limit & Low Water Shut Off
Thermal Pump Protection
Downstream Chemical Injection
Stainless Steel Side Panels
Four Wheel Design
Pneumatic Tires
Removable Wheels For Floor Mounting
Integrated Hose Reel Receiver Mount
Centralized Lifting Point

MODEL:	DC-3003.5	DC-3504-B	DC-3005-CL	DC-3505
Operating Pressure (PSI)	3000	3500	3000	3500
Flow Volume (GPM)	3.5	4	5	5
Engine	10HP Vanguard	13HP Honda	16HP Vanguard	18HP Vanguard
Engine Horsepower	9	13	16	18
Engine Start	Recoil	Electric	Electric	Electric
Engine Fuel	Gasoline	Gasoline	Gasoline	Gasoline
Engine Fuel Tank Capacity (Gal)	1.6	1.6	7.5	7.5
Burner Fuel Tank Capacity (Gal)	7.5	7.5	7.5	7.5
Input BTU	384,000	384,000	384,000	384,000
Pump Drive	Direct	Belt	Clutch/Belt	Belt
Max. Water Temp Output (°F)	210	210	210	210
Dimensions (LxWxH) Inches	47x39x26	47x39x26	47x43x26	47x43x26
Net Weight (lbs)	420	435	490	490
