HS Series

Power Eagle HS Series units are truly revolutionary in several ways.  These stationary, propane, or natural gas fired machines heat water with 98% efficiency and use up to 50% less fuel.  Additionally, HS Series units are far less costly to install in your building compared to traditional gas fired machines.  Venting can be done in 4” CPVC pipe directly through an external wall.  Vertical metal chimney is not required. HS1 models utilize one heat chamber, one water pump, and a single set of controls with up to 6 GPM flow.  These are ideal for single gun operation. View Printable Sheet:  HOP-HS1-one-sheet HS2 models utilize dual heat chambers allowing for higher flow rates between 6 – 12 GPM.  This high flow is provided by a dual pump system and is operated by a single set of controls.  These units are ideal for high flow, single gun operations or multi nozzle spray manifold setups where flow rates are constant. View Printable Sheet:  HOP-HS2-one-sheet HS3 models utilize dual heat chambers, dual pump systems and have two independent sets of controls.  Each control set operates a pump via clutch-drive.  The HS3 models provide the benefits of two totally independent pressure washers driven off a single motor and on one chassis.  HS3 models are ideal for true independent two gun operation. View Printable Sheet:  HOP-HS3-one-sheet

Description

Product Description

Standard Features

  • Lifetime Heating Coil Warranty
  • ETL Listed
  • Heavy Duty Totally Enclosed Steel Cabinet
  • Heavy Duty Formed Steel Legs
  • Durable High-Gloss Powder Coated Automotive Quality Paint Finish
  • Easy Access Latching and Removable Steel Compartment Covers
  • Watertight Electrical Panel
  • Full Laminate High Visibility Control Panel Overlay
  • Diagnostic Control Monitoring Lights
  • Hour Meter with Break-In and Oil Change Alerts
  • Adjustable Temperature Control
  • Automatic Shutdown Timer
  • Low Water Shut-Off Protection
  • Highly Efficient Combustion Chamber Design
  • Rear Exhaust Port for 4″ PVC or Galvanized Stack Pipe
  • Heating Coil Constructed of ASTM A53 Schedule 80 Steel Pipe
  • Electronic Burner Ignition
  • High-Limit Temperature Control
  • Pressure Relief Valve
  • Triplex Belt Driven Pressure Pump
  • Exclusive One Piece Pump Inlet Manifold
  • JIC Fittings For Easy Service
  • Stainless Steel Float Tank
  • Calibrated Detergent Mixing Valve
  • Soap Solenoid
  • Trigger Gun Control
  • Wire Braid Discharge Hose
  • Quick Coupled Stainless Steel Nozzles

Available Options

  • Additional Voltages
  • Clutch-Drive Pump
  • Multi-Gun Operation
  • Watertight Remote Control Station
  • Steam Combination (Not ETL)
  • Machine Stand

HS1 Models: Single Chamber – Single Control

MODEL: HS1-303-S HS1-504-S HS1-2304 HS1-3004 HS1-2305 HS1-3005 HS1-2506 HS1-3006
Operating Pressure (PSI) 300 500 2300 3000 2300 3000 2500 3000
Water Flow (GPM) 3 4 4 4 5 5 6 6
Output Water Temperature (Deg. F) 300 300 190 190 190 190 190 190
Horsepower 0.75 2.3 6 / 7.5 8 / 7.5 8 / 7.5 10 15 15
Voltage 115 115 208-230 / 440 208-230 / 440 208-230 / 440 208-230 / 440 208-230 / 440 208-230 / 440
Amperage 10 20 30 / 15 40 / 20 / 15 40 / 20 / 15 50 / 25 / 15 60 / 40 / 20 60 / 40 / 20
Phase 1 1 1 or 3 1 or 3 1 or 3 1 or 3 1 or 3 1 or 3
Input BTU's (NG) 440,000 440,000 240,000 240,000 320,000 320,000 240,000 240,000
Input BTU's (LP) 420,772 420,772 229,512 229,512 306,016 306,016 420,772 420,772
Vent Stack Diameter 4″ 4″ 4″ 4″ 4″ 4″ 4″ 4″
Discharge Hose (Standard) 3/8″ x 50′ 3/8″ x 50′ 3/8″ x 50′ 3/8″ x 50′ 3/8″ x 50′ 3/8″ x 50′ 3/8″ x 50′ 3/8″ x 50′
Dimensions 32x48x52.5 32x48x52.5 32x48x52.5 32x48x52.5 32x48x52.5 32x48x52.5 32x48x52.5 32x48x52.5
Weight (LBS) 787 787 887 887 887 912 1017 1017

Related Products

Ice Dam Equipment

This unit was designed for real-world conditions. It operates without electricity, making it perfect for cold-weather job sites where power isn’t available. You can feed it from a hose, tank, or trailer setup.

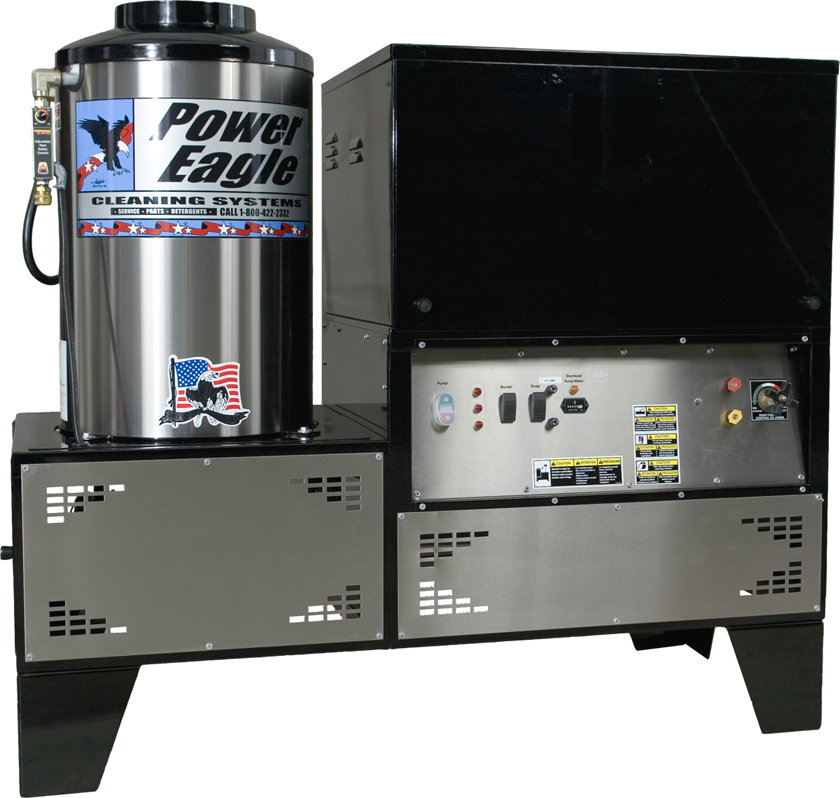

ST Series
